Systems

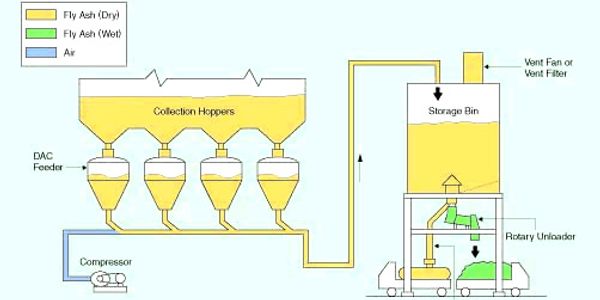

Dense Phase Pneumatic Ash Conveying Systems
We offer Dense Phase Pneumatic Conveying System for conveying of various powdery materials like aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement/Steel/Paper/Foundry/Chemical/ Process, etc. KWALITY, with material inlet Valve design and the technology of Dense Phase Pneumatic Conveying, has always kept a brand name with these industries by giving practical solutions to the various requirements as arises from time to time, irrespective of batch type/continuous conveying, shorter/longer distances, lower/higher capacities, extreme physical/chemical properties, temperature ranges, etc.

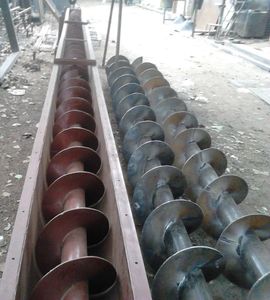

Screw Conveyors
Certain applications may require Mechanical System for conveying of fly ash. For transportation/feeding/blending/classification of fly ash in cement industry, we also offer various systems like bagging/bag unloading system, truck/tanker loading/unloading system, wagon loading/unloading system, bucket elevator system, air slide system, weigh bin system, classifier system, blending system, etc. as per the application requirement. KWALITY's Mechanical Systems are installed for wide range of capacities for cement industries.

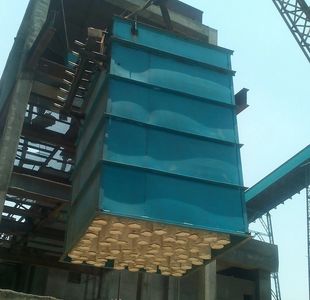

Dust Extractor System
KWALITY design , manufacture, install & commission Dust Extraction System as required for the layout of the plant for dust and fumes of temperature ranging up to 250-350oC. Our experienced team of design and installation engineers will work with you to provide a system to suit your requirements and budget. The Industrial Dust Extraction System are extensively used for ensuring dust free, fumes free and clean working atmosphere.
Our industrial dust extraction systems are designed as per clients standard requirement. For coal handling unit the air flow of the different equipments like vibrating screen, belt conveyors, crusher, bucket elevator etc is gauged as per the standard. The duct velocities are decided in such a way that in any condition dust should not settle in the duct. Typical velocity in the duct is between 16 to 18 m/s.
The basic Dust Extraction Systems mainly comprises of following :- Hood
Ducts, Fan, Filters, Discharge Stack
Dense Phase Duct Conveying Systems
We are engaged in manufacturing and exporting fabricated Transport Vessel System, which operates on the principle of Dense Phase Pneumatic Conveying at a low velocity moving through the conveying pipe in separate batches or plugs.
Knife Gate Valve / Cylinder Optd.
This valve is manufactured using premium quality raw materials for General Industrial service applications. The design of the body and seat assures easy shut off on suspended solids in all industries.
Knife Edge Gate Valve is available in different Size i.e. from 100NB to 400NB
Metallic Expansion Bellow
This S S Bellow is being used for easily maintenance of system. The provided bellows are used to absorb movement and vibration in the process of transferring high temperature commodities such as FLY ASH, STEAMS and Gases etc. These bellows are known for their easy installation.
Duct/Ash Conveying Systems
Duct/Ash Conveying Systems
Have you opened a new location, redesigned your shop, or added a new product or service? Don't keep it to yourself, let folks know.
PIPE 125NB TO 300NB
Duct/Ash Conveying Systems
PIPE 125NB TO 300NB
